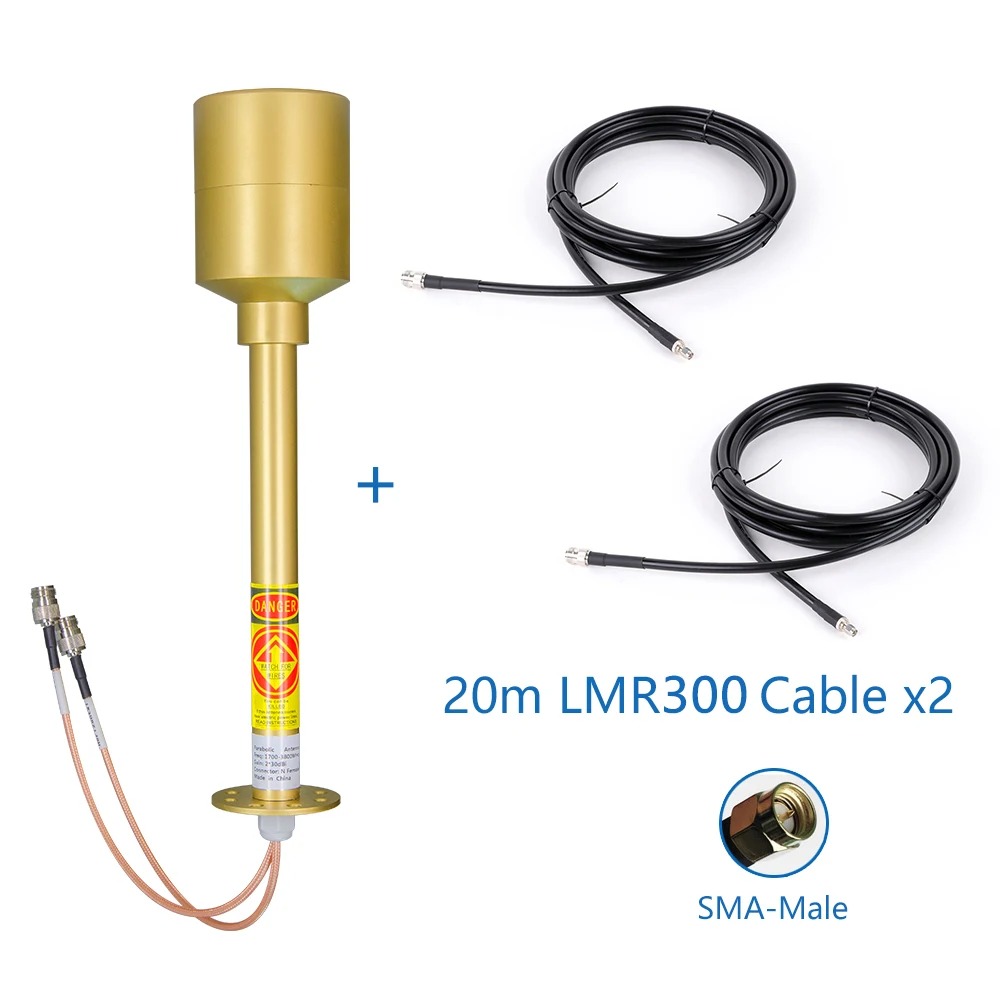

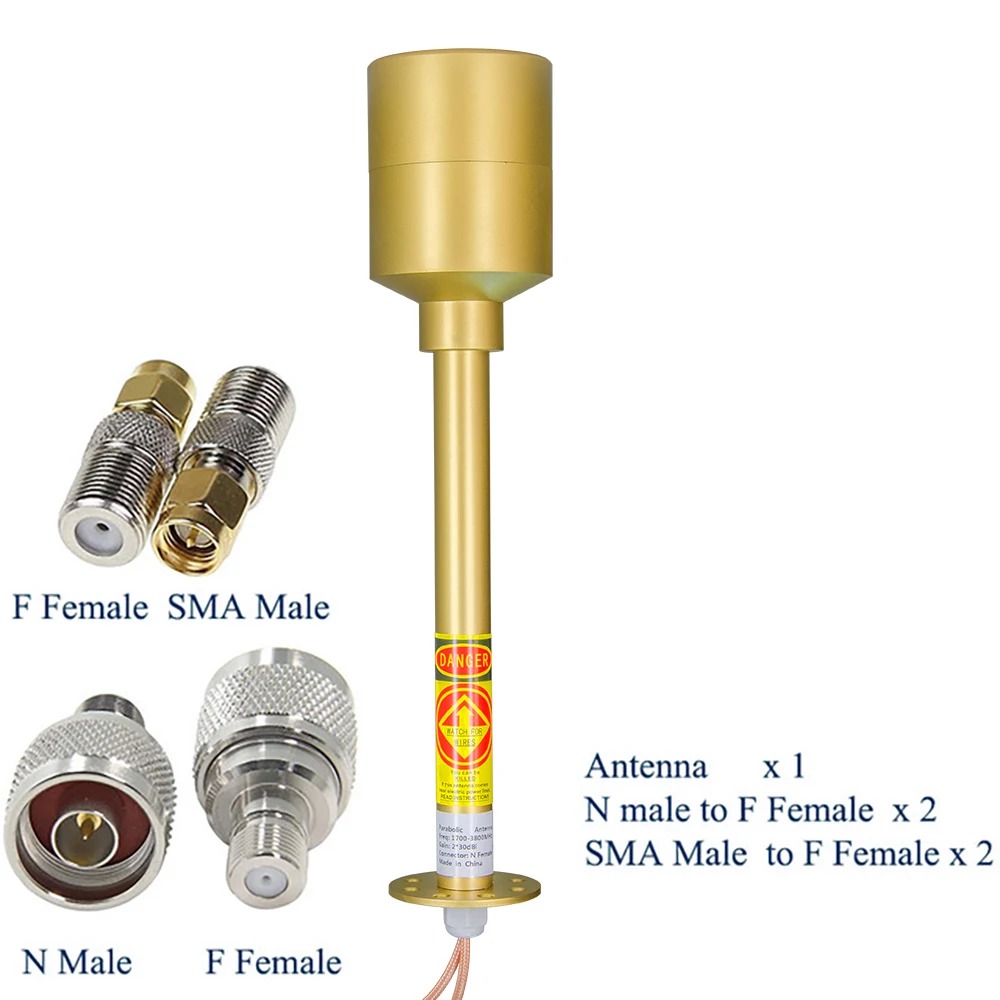

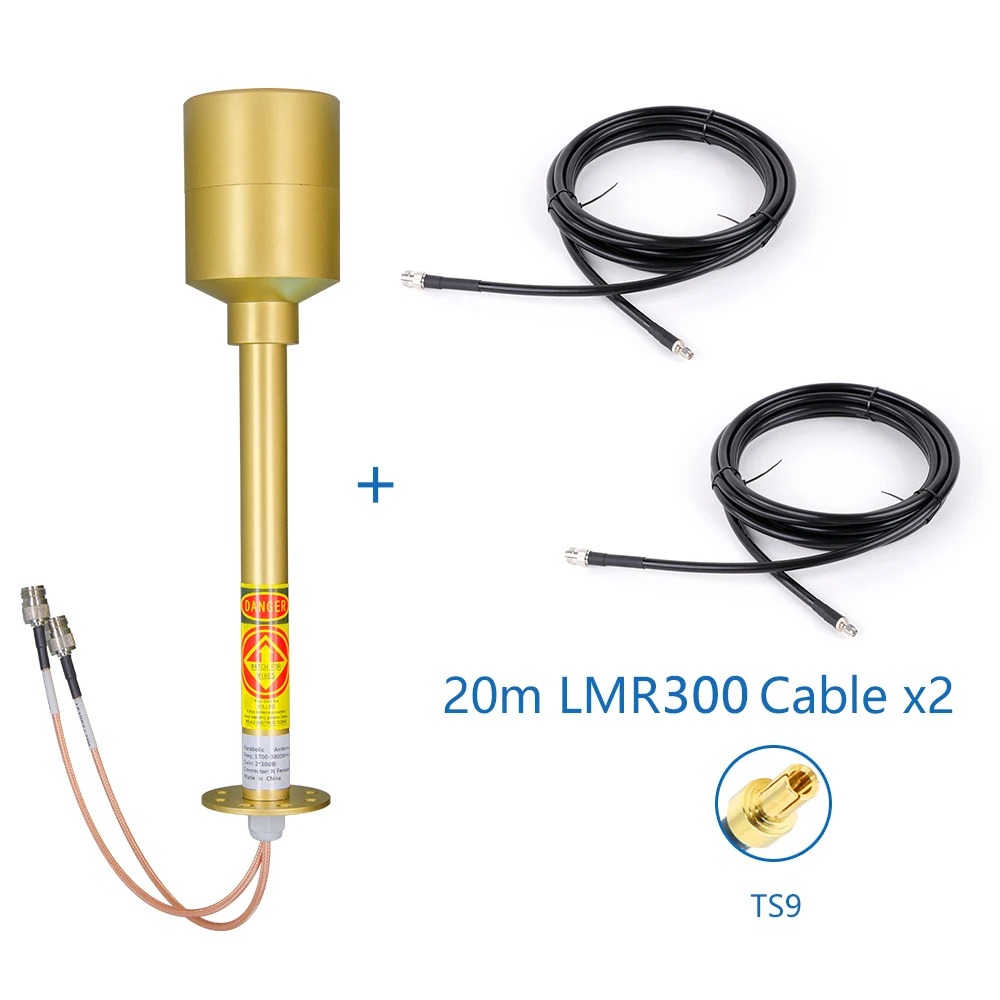

5G 4G Lte Mimo Antenna Feed 30dBi 1700-3800MHz Feedhorn Long Range Outdoor External Antenna
Product Summary
| Category | Directional Parabolic Antennas Feed |
|---|---|
| Model | 1738D-30DF |
| Frequency Range (MHz) | 1700-3800MHz |
| Gain (dBi) | 30 dBi |
| Horizontal Beamwidth (°) | 10 |
| Vertical Beamwidth (°) | 14 |
| F/B Ratio (dB) | ≥30 |
| VSWR | ≤1.8 |
| Nominal Impedance (Ω) | 50 |
| Polarization | Horizontal and Vertical |
| Maximum Power (W) | 100 |
| Dimensions (m) | 35cm |
| Weight (kg) | 1.5 |
| Rated Wind Velocity (m/s) | 60 |
| Connector | 2x N-Female |
| Mounting Mast Diameter (mm) | Φ35-50 |
Detailed technical data sheets will be available on request.
