5150-5850MHz 12dBi 5G Wifi Antenna Outdoor Directional Panel Antenna
Antenna Parameters
| Parameter | Specification |
|---|---|
| Mode | AS-DA5500PVG12-NK |
| Frequency | 5150-5850MHz |
| Bandwidth | 700MHz |
| Gain | 10dBi |

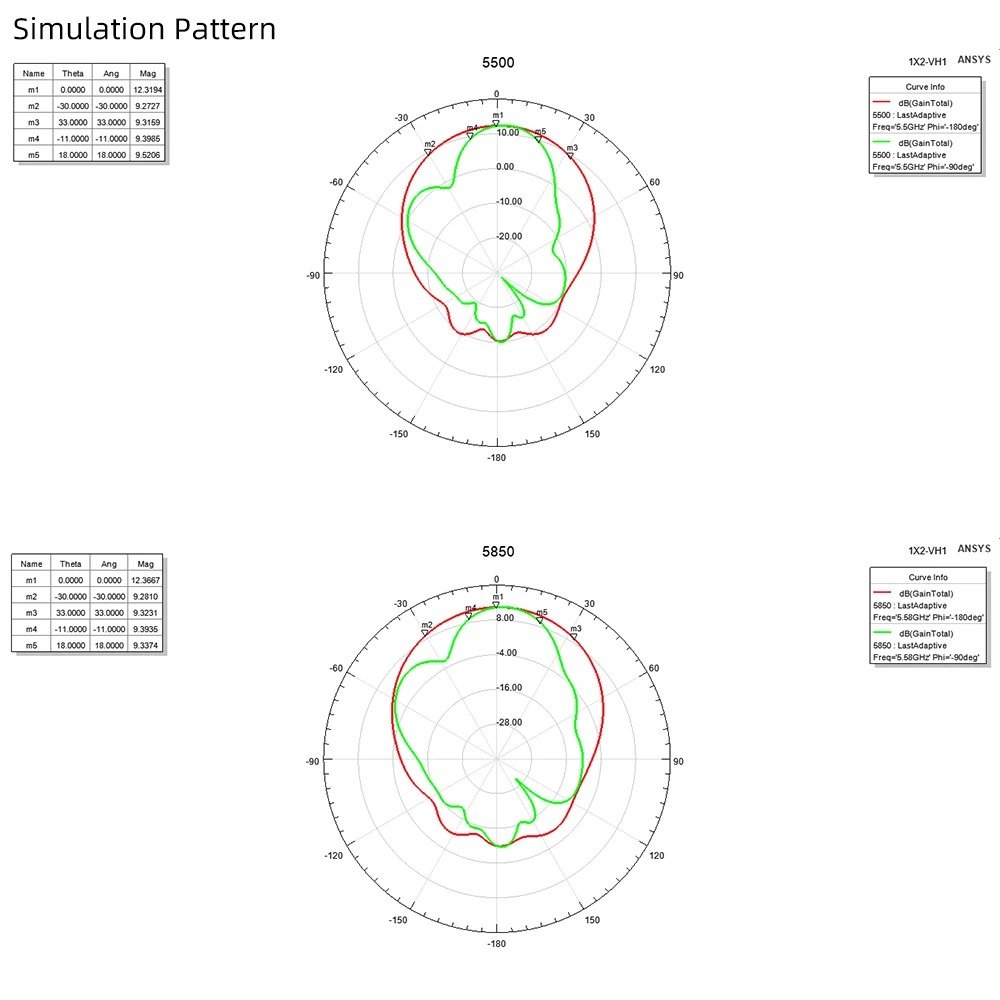

| Beamwidth (H) | 64° |
| Beamwidth (V) | 53° |

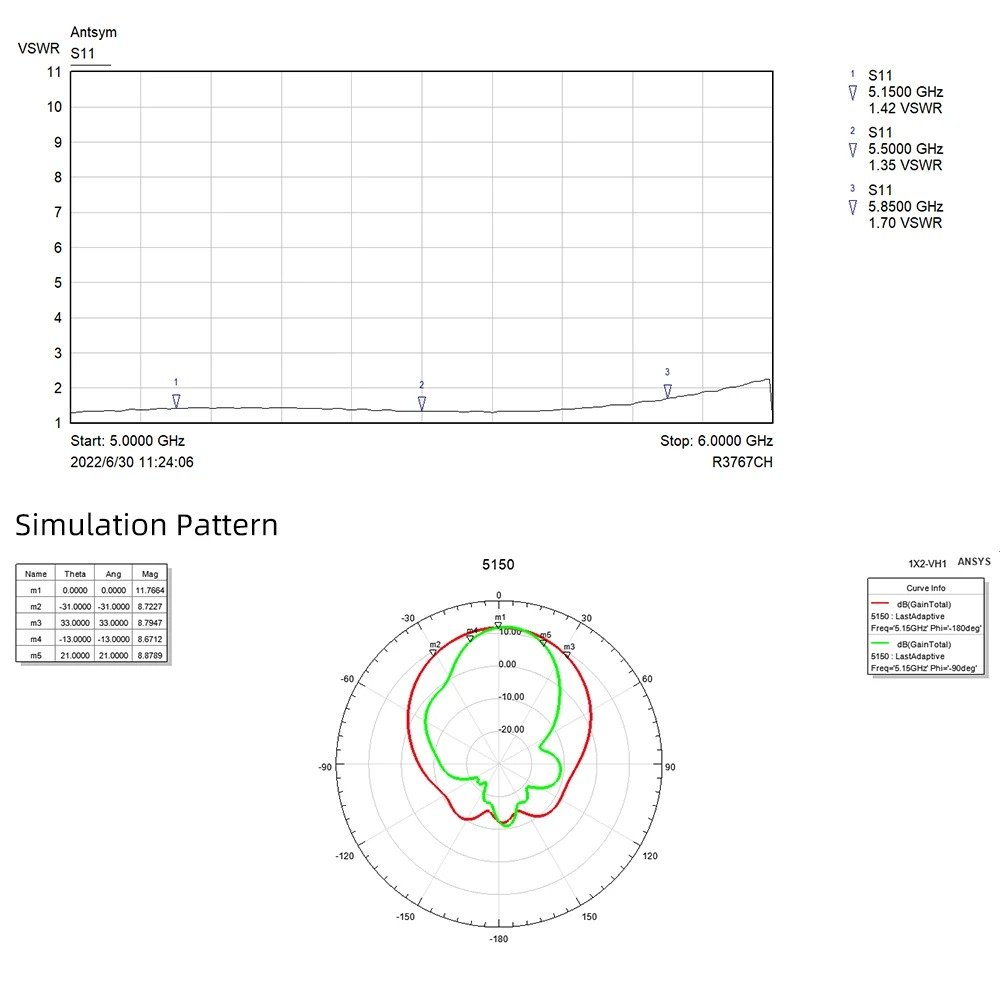

| VSWR | <2.0 |
| F/B Ratio | >25dB |
| Impedance | 50Ω |
| Polarization | Vertical |
| Max Power | 100W |
| Connector | N-Female |
| Size | 13013019mm |
| Weight | 0.2kg |
| Color | White |
| Material | uPVC |
| Max Mounting Diameter | 52mm |
| Working Temperature | -55°C ~ +75°C |
Detailed technical data sheets will be available on request.
